Performance and advantages

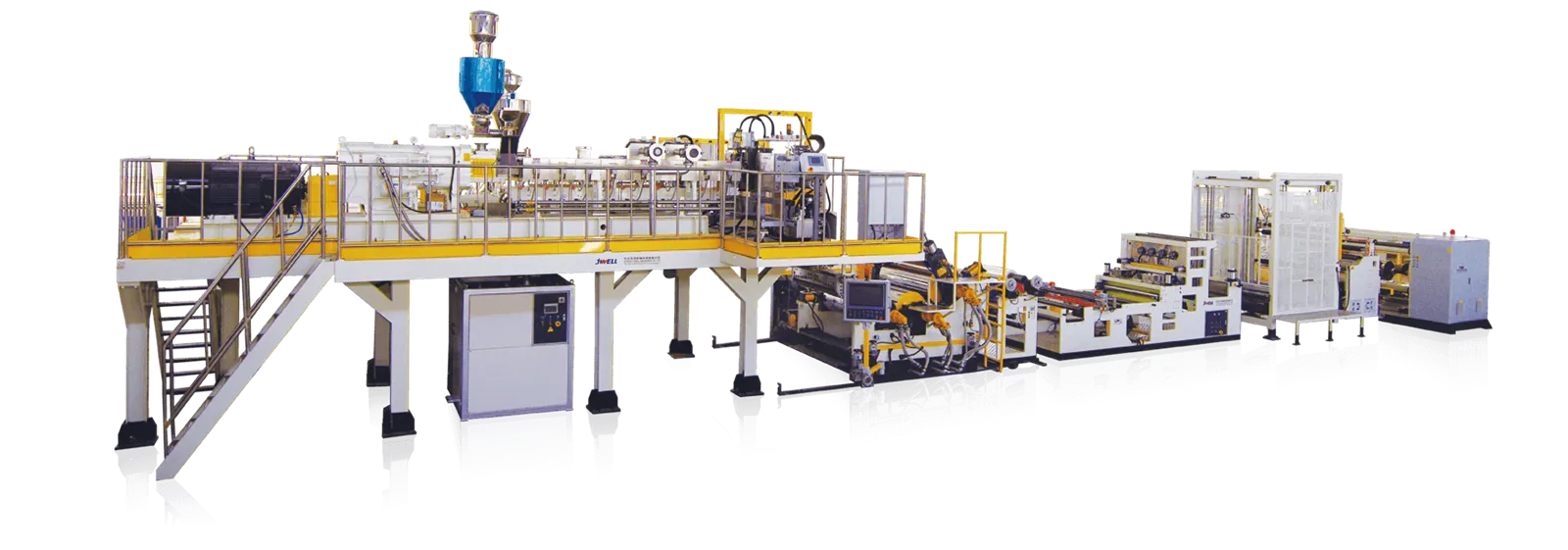

- JWELL introduces the vacuum degas drying-free and energy-saving PET sheet production line with coaxial parallel twin-screw extruder.
- Low energy consumption, simple process, easy to use and maintain equipment.
- There are screw diameter 75/85/95/110/135mm and other specifications and models of isotropic parallel twin extruder to choose from.
- Its unique screw combination structure improves cooling efficiency and capacity and sheet quality.
- Multi-component feeding device can reasonably control the proportion of new material, return material and color masterbatch.
- The produced sheet can be used for thermoforming printing packaging and other fields.
Main technical parameters
|
Model |
Extruder model |
Products thickness(mm) |
Main motor power(kw) |
Capacity(kg/h) |
|
Single layer |
JW75/40-1000 |
0.15-1.5 |
132 |
400-500 |
|
High-speed singlelayer |
JW75/42-1000 |
0.15-1.5 |
160 |
500-600 |
|
Multi layer |
JW75&52/40-1000 |
0.15-1.5 |
132/15 |
500-600 |
|
Highly-efficient |
JW95&65/44-1500 |
0.15-1.5 |
250/75 |
800-1000 |
Note: The specifications are subject to change without prior notice.
Hot Tags: Twin Screw Energy Saving Type PET/PLA Sheet Line,Board And Sheet Extrusion Machinery
